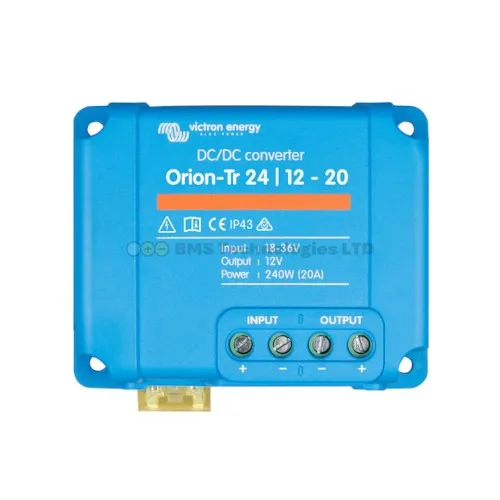

Orion-Tr 24/12-9A (110W) (R)
£46.26
3 retailers
Orion IP67 24/12-5A (60W)
From £11.85
RRP £12.58
Save £0.73 (6% off)
Compared across 3 retailers
Victron Orion IP67 24/12-5A (60W) non-isolated DC-DC converter, waterproof with cast aluminium casing for marine and automotive use.
- SKU
- ORI241205260
- Dimensions
- 25 x 43 x 20 mm
- Input Voltage
- 15-40 Vdc
- Output Voltage
- 12V +/-3%
- Continuous Output Current
- 5A
- Power
- 60W
Price Comparison
| Retailer | Price | Availability | Actions |
|---|---|---|---|
| BMS Technologies | £11.85 Use code V4L5 at checkout for 5% discount | In Stock | Visit Site |
| Powerland | £13.99 | In Stock | Visit Site |
| Amazon UK | £23.49 | In Stock | Visit Site |
Price History
Full Specifications
| SKU | ORI241205260 |
|---|---|
| EAN | 8719076048428 |
| Dimensions | 25 x 43 x 20 mm |
| Input Voltage | 15-40 Vdc |
| Output Voltage | 12V +/-3% |
| Continuous Output Current | 5A |
| Power | 60W |
| Efficiency | 93% |
| IP Rating | IP67 |
| Operating Temperature | -40 to +70 C |
| Cable Length | 1.8m input and output |
| Construction | Cast aluminium, resin-moulded |
| Parallel | Up to 5 units |
| Weight | 0.11 kg |
About the Orion IP67 24/12-5A (60W)
The Victron Orion IP67 24/12-5A is a 60W non-isolated DC-DC converter designed for demanding environments. With IP67-rated protection in a cast aluminium casing with resin-moulded electronics, it is fully waterproof and dustproof. Operating from 15-40 Vdc input to 12V output at up to 5A continuous, it achieves 93% efficiency. Features integrated 1.8m input and output cables, operates from -40 to +70 C, and can be paralleled with up to 5 units for higher power. Overload protection uses hiccup mode with automatic recovery.
Application Guide
- Essential for Euro 6 and later vehicles where the smart alternator prevents traditional split-charge relays from fully charging your leisure battery.
- The Orion-Tr Smart uses Bluetooth and adaptive charging profiles to safely charge lithium or lead-acid batteries from your vehicle alternator.
- Choose isolated models when connecting batteries of different voltages (e.g., 24V truck to 12V leisure battery).
